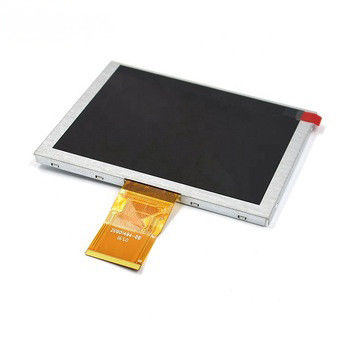

100% Original Innolux 5'' 640X (RGB) X480 Zj050na-08c TFT LCD Module

Certification
China Royal Display Co.,Limited certification
China Royal Display Co.,Limited certification
Customer Reviews
Royal Display, Perfect LCD Supplier, Fast response, thanks for cooperation.

—— Beata from Poland

Received the lcds today, no damage and test well, thanks.

—— Natalya Kryukova from Russia

Fast delivery and good quality, I am happy with Royal Display, I will order more later.

—— Meerimgul from Turkey

High quality screen, fast service.

—— Daniel Castelo from Switzerland

I'm Online Chat Now

100% Original Innolux 5'' 640X (RGB) X480 Zj050na-08c TFT LCD Module

100% Original Innolux 5'' 640X (RGB) X480 Zj050na-08c TFT LCD Module
100% Original Innolux 5'' 640X (RGB) X480 Zj050na-08c TFT LCD Module

Large Image :  100% Original Innolux 5'' 640X (RGB) X480 Zj050na-08c TFT LCD Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: RoHS
Model Number: ZJ050NA-08C
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: 64pcs/carton
Delivery Time: 7~10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300,000 Piece/Pieces per Year
Detailed Product Description
Type: TFT Display Type: TFT LCD
Screen Size: 5'' Resolution: 640X3(RGB)X480
Outline (mm): 117.65(W) × 88.43(H) × 5.70(D) Active Area(mm): 101.57(W) × 76.18(H)
Driver Element: A-Si TFT Active Matrix Surface Treatment: Anti-Glare
Color Arrangement: RGB-stripe Application: Industrial Application
Backlight Power Consumption: 0.960W (Typ.) Interface: Digital
High Light:

640X480 TFT LCD Module

,

Innolux TFT LCD Module

,

ZJ050NA-08C

100% Original Innolux 640X (RGB) X480 Zj050na-08c 5'' TFT LCD

PRODUCT DESCRIPTION

 Item  Description
 Product Name  5inch TFT LCD
 Model No.  ZJ050NA-08C
 Dot Format  640x480
 Outline (mm)  117.65(W) × 88.43(H) × 5.70(D)
 Active Area(mm)  101.57(W) × 76.18(H)
 Driver element  a-Si TFT active matrix
 Interface  Digital
 Backlight Power consumption
 0.960W (Typ.)
 Operating Temp  -30º C~70ºC
 Storage Temp  -30º C~80ºC



100% Original Innolux 5'' 640X (RGB) X480 Zj050na-08c TFT LCD Module 0
