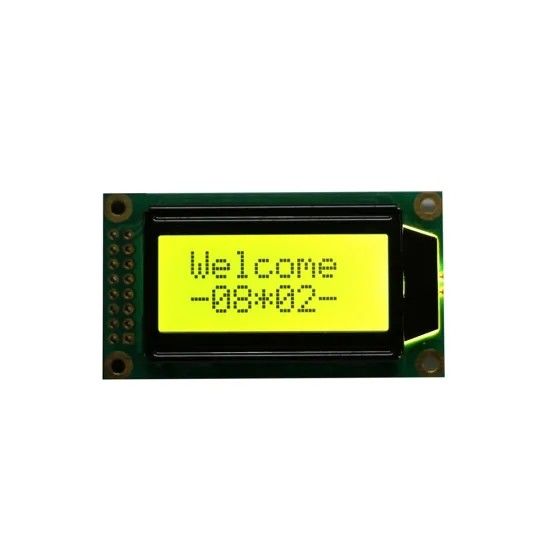

Alphanumeric 8x2 STN Yellow Green Transflective LCD Module RYP0802B-Y

Alphanumeric 8x2 STN Yellow Green Transflective LCD Module RYP0802B-Y
Alphanumeric 8x2 STN Yellow Green Transflective LCD Module RYP0802B-Y

Large Image :  Alphanumeric 8x2 STN Yellow Green Transflective LCD Module RYP0802B-Y

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: ROHS, CE,
Model Number: RYP0802B-Y
Payment & Shipping Terms:
Minimum Order Quantity: 3K
Price: USD 2.45-3.99
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 15~25 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, PayPal
Supply Ability: 300k/Month
Detailed Product Description
Type: Character,STN,COB Display Mode: Standard 8X2 LCD Character Module,POSITIVE,Transflective
Lcd Type: STN(YELLOW-GREEN) Interface: 8 Bit MPU
Viewing Direction: 6 O'clock Operating Temp: -20 To 70℃
Storage Temp: -30 To 80℃
High Light:

8x2 Transflective LCD Module

,

STN Transflective LCD Module

,

RYP0802B-Y

8x2 Character LCD Display | RYP0802B-Y

AKA: 0802 Alphanumeric Display Module
Module size: 58(L) * 32(W) * Max 13.8(T)

Driver: AIP31066

STN Yellow/Green background with Yellow/Green LED backlight, bottom (or 6:00) viewing angle, Wide temperature range: -20° Celcius to +70° Celcius which equates to (-4° Fahrenheit to +158° Fahrenheit), Transflective (+) polarizer, 5V LCD, 5V LED, RoHS Compliant

STN (Super-twisted Nematic) provides a sharper image and wider viewing angle than TN (Twisted Nematic). The cost for STN if approximately 5% higher than TN. STN is an ideal fluid for outdoor products that need to be read at various angles. The Transflective polarizer is a mixture of Reflective and Transmissive. It provides the ability to read the LCD with or without the backlight on. It will work for all lighting conditions from dark with backlight to direct sunlight which makes it the most common choice. There is no cost difference between Transflective, Transmissive and Reflective.

Item Description
Product Name 8x2 Character LCD Module
Model No. RYP0802B-Y
Dot Format 8X2
Outline (mm) 58*32
Viewing Area(mm) 28*16
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC AIP31066
Power supply 3.3V
Interface Parallel
Operating Temp -30º C~70ºC
Storage Temp -30º C~80ºC
