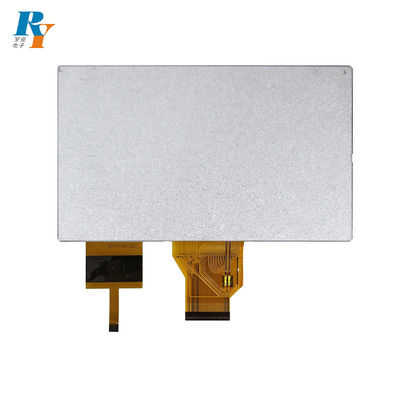

3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface

3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface
3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface 3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface 3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface 3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface

Large Image :  3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface

Product Details:
Place of Origin: China
Brand Name: Royal
Certification: SGS, ROHS
Model Number: RYD002
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: Negotiable
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 15~25 working days
Payment Terms: L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability: 10k/Month
Detailed Product Description
Type: TFT LCD Resolution: 480 X 3(RGB) X 272
Interface: 50pin FPC, Parallel 24bit RGB Viewing Direction: Full Viewing Angle
Aspect Ratio: 16:9 Contrast Ratio: 500
Warranty: One Year Display Mode: Normally Black
Application: Industrial Application,Multi-Touch Query Machine,Desktop Monitor
High Light:

Tft Lcd Display Module

,

Hd Tft Display



3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface



General Specifications



1. 480 x RGB x 272 dots

2. Innolux TFT Display

3. 0.96-10.1 inch LCD panel & module are available

4. Support OEM & OEM service

5. More than 10years LCD experience





Display Specifications



 Item  Description
 Model Name  AT056TN52 V.3
 Product type  LCD Module
 Screen Size  3.5"
 Aspect Ratio  4:3
 Resolution  480X3(RGB)X272
 Module Size(mm)  126.5 x 100.0 x 5.7
 Active Area(mm)  112.896 x 84.672
 Viewing Angle (Tpy.)θT/θB/θL/θR  50/70/70/70
 Luminance(nits)  200
 Contrast Ratio  500
 Response Time(ms)  25
 Weight (g)  127.5
 Interface  50pin FPC,Parallel 24bit RGB
 Operation Temperature( ºC)  -20º C~70ºC
 Storage Temperature (ºC)  -30º C~80ºC




Applications



Our LCD module size are from 2.8 inch to 10.1 inch which are widely used in digital camera, DV, security monitoring, carcorder, PMP, MID and Education Learning Aid, POS Machine etc.

3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface 0



Our Advantage



1) Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.


2) Packing: Packed in anti-static bags with foam box to ensure safety in transportation.


3) Payment Terms: T/T, Western Union, PayPal, Bank

4) Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5) Service: Best after-sales service to ensure satisfaction from customers.

6) Delivery: Goods will be delivered with 2-4 days by DHL, UPS, TNT, EMS, or By Air

7) Warranty: Usually, product warranty for one year.

8) Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.





FAQ



Q: Are you a factory or trading company?

A: We are a OEM/ODM factory.



Q: What about the production time?
A: The LCD products need 5-6 weeks to be made after receive deposit.



Q: Do you offer custom solution?
A: Yes,we can offer custom solution if standard products couldn't meet buyer' requirements.



Q: What is the lead time of the products ?



A: Samples in stock will be delivered 1-5days after payment.



Mass production typically needs 10-25 for delivery.

Tailor-made design drawings will begin after payment. The initial samples will be finished about 15days after the drawing is approved.



3.5 Inch Full Color TFT LCD Display Module 480 X 272 Dots With MIPI Interface 1
