Stn Graphic 192x64 Dots Mono LCD Module FSTN FFC Parallel Interface

Stn Graphic 192x64 Dots Mono LCD Module FSTN FFC Parallel Interface
Stn Graphic 192x64 Dots Mono LCD Module FSTN FFC Parallel Interface Stn Graphic 192x64 Dots Mono LCD Module FSTN FFC Parallel Interface Stn Graphic 192x64 Dots Mono LCD Module FSTN FFC Parallel Interface Stn Graphic 192x64 Dots Mono LCD Module FSTN FFC Parallel Interface Stn Graphic 192x64 Dots Mono LCD Module FSTN FFC Parallel Interface Stn Graphic 192x64 Dots Mono LCD Module FSTN FFC Parallel Interface

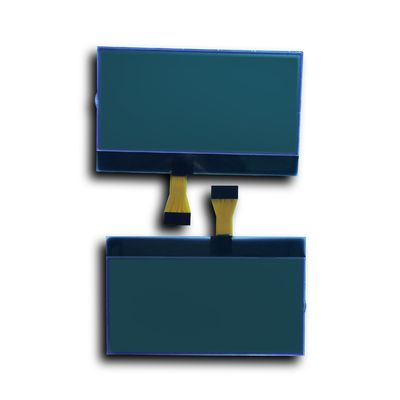

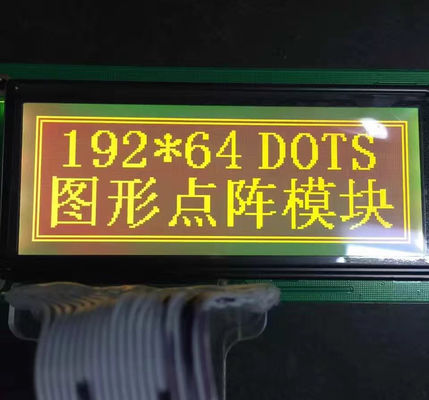

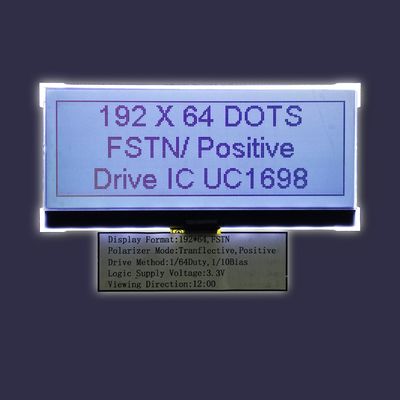

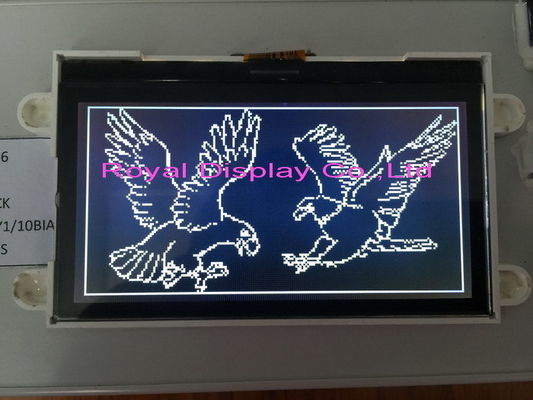

Large Image :  Stn Graphic 192x64 Dots Mono LCD Module FSTN FFC Parallel Interface

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RY19264
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 2.38-3.98
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 192X64 Outline (mm): 135X65
IC Package: Cog Display Type: FSTN
Power Supply: 3.3V Interface: Parallel
View Angle Range: No Connector: FFC-Connector
Viewing Direction: 6:00 Appearance: Black On White
Operating Temp.: -20º C~70ºC Storage Temp.: -30º C~80ºC
High Light:

Stn Graphic Mono LCD Module

,

ROHS FSTN Graphic LCD Module

,

FSTN FFC Cog LCD Display

FSTN Crystal Liquid Display 19264 dot matrix lcd display

PRODUCT DESCRIPTION
1. 192x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 192x64dots Graphic LCD Module
Model No. RY19264
Dot Format 192x64
Outline (mm) 135*65
Viewing Area(mm) 6:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7586S
Power supply 3.3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC





Graphic LCDs

Graphic LCDs can display fully changeable graphics. It is a common option for applications that need to display many different menus or need the ability to display several different fonts and font sizes. In addition to the changing graphics, it also can provide optimal sunlight readability with low power consumption.

Features

1. Wide variety of off the shelf sizes and resolutions

2. Most products kept in stock and can ship same day

3. Ability to display fully changeable graphics

4. Sunlight readable

5. Low power consumption

6. Fully customizable
