Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP240160A
Payment & Shipping Terms:
Minimum Order Quantity: 1.8K
Packaging Details: 160pcs/CTN 9.5Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 500k/Month
Detailed Product Description

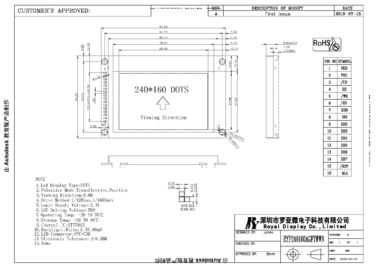

Product Name: COG Graphic LCD Module 240 X 160( RYP240160A) Model No.: RYP240160A
Dot Format: 240x160 Viewing Angle: 6 O' Clock
LCD Type: FSTN LED Backlight: White
Driver IC: ST7586S Operating Temp: -20º C~70º C
Storage Temp: -30º C~80º C
High Light:

Lcd Graphic Display Module

,

Transflective Lcd Display

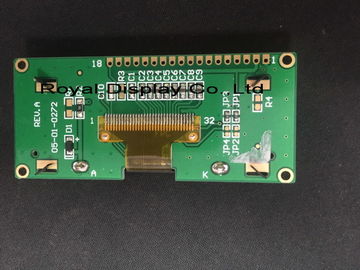

RYP240160A Graphic LCD Module FSTN Positve 240*160 dots , 3.3V Power supply With PCBA , Completely Replace LM240160SCW

  1. COG Graphic LCD Module
  2. Dots Format , 240x160
  3. Controller , ST7586S OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. Widely Use On Hand-held Device
  6. PIN SYMBOL
    1 VDD
    2 VSS
    3 /CS
    4 RS
    5 /WR
    6 /RD
    7~14 DB0~DB7
    15 /RST
    16 BLA

    RYP240160A Custom Graphic LCD Module RYP240160A 6 O' Clock Viewing Angle 0
