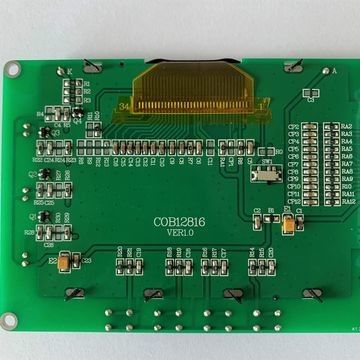

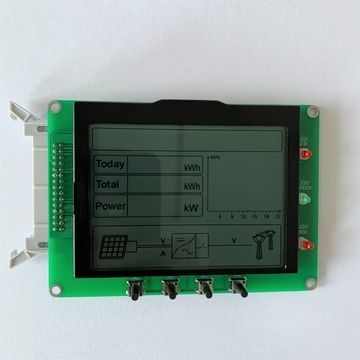

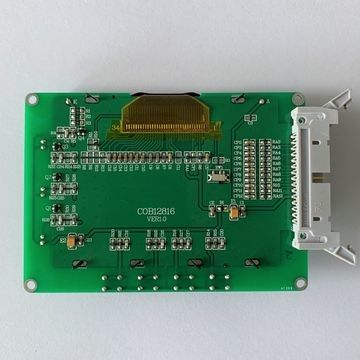

LCM Positive Monochrome LCD Screen COB Modules ST7565P Controller

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  LCM Positive Monochrome LCD Screen COB Modules ST7565P Controller

Product Details:
Place of Origin: CHINA
Brand Name: ROHS
Certification: RoHS, ISO
Model Number: RYP240128B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD10.89-14.59
Packaging Details: Cartons, Capboard, EPE, Blister TrayFuel Dispenser LCD 22 digital 7 segment LCD display module PRODUCT DESCRIPTION
Delivery Time: 20-25 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Model No.: RYP7032A Dot Format: 128*16
Viewing Angle: 6 O' Clock LED Backlight: White/ YG
Controller: ST7565P Operating Temp: -20º C~70º C
LCD Type: FSTN Postive
High Light:

LCM Positive Monochrome LCD Screen

,

ST7565P Controller Monochrome LCD Screen

,

COB ModulesGraphic LCD Screen

PRODUCT DESCRIPTION

Product Name 128*16 Dots LCM Positive White LCD screen
Model No. RYP7032A
Dot Format 128*16
Outline (mm) 119.00(L)*84.00(W)*12.10(T)
LCD Type Transflective/Positive
Viewing Angle 6 O' clock
Backlight White
Driver IC ST7565P
Power Supply 3.3V
Operating Temp -30º C~70ºC
Storage Temp Storage Temp







OUR SERVICE ADVANTAGES



1. More than 10 years experience, strong background in Monochrome LCD display design.

2. IATF16949:2016 and ISO9001:2015 certificated manufacture, provided all customized solutions.

3. Faster support in Front and After-sales services. Support customer from the product design.









Graphic LCD Display

1. Customized according to client's requirement

2. Monochrome Custom-made Module in TN,HTN, STN, FSTN,VA Technologies

3. Available for different modes such as yellow-green, blue and black color.

4. Customized for the total module including new size, backlight, color, PCB circuit board. connection mode ect.

Application: Radio,Pos Machine, Medical Equipment, Household Devices,Telephone etc..


Graphic LCD displays are your first stop when simple text is not sufficient for a design

With per-pixel control available, almost any monochrome image can be drawn on the display. With the many possibilities this level of control offers, Graphic LCDs can be found in products ranging from handheld gaming devices to industrial consoles. Like character LCDs, graphic LCDs are available in TN, STN, and FSTN options with positive and negative images. The polarizers come in Reflective, Transmissive, and Transflective types and are available in a wide range of colors.

Parallel and Serial interface options make operation no more difficult than interfacing with an 8-bit microcontroller. These displays come with user controlled contrast meaning they can be used in a wide range of settings and the display can be adjusted to ensure optimal optical performance. Many displays also have temperature compensation circuitry to maintain contrast as the ambient temperature changes. All of this makes graphic LCDs a versatile and rugged means of adding graphics to a design.





APPLICATION



LCM Positive Monochrome LCD Screen COB Modules ST7565P Controller 0

LCM Positive Monochrome LCD Screen COB Modules ST7565P Controller 1





Custom Made Project Order Flow

1. Enquiry


Send us draft / details drawing, project schedule, application, qty. demand, etc by email ( to wendy@rylcd.com)
Quotation will be ready within 3 days ( normally 1 day).



2. Counter drawing


We will send out counter drawing after confirm of our quotation and received the tooling charge.
normally, 3 days for LCD glass and 1 week for LCD module.



3. Tooling samples


After drawing approval, tooling samples will be finished around 30 days



4. Mass production


After samples approval, mass production goods will be finished around 30 to 60 days. Depends of the order situation and materials supply situation.







We have an enjoyable experience on our best quality product and satisfied service,

LCD professional manufacturer ROYAL DISPLAY with over 10 years experience in LCD field



we do believe we can become your reliable supplier!
