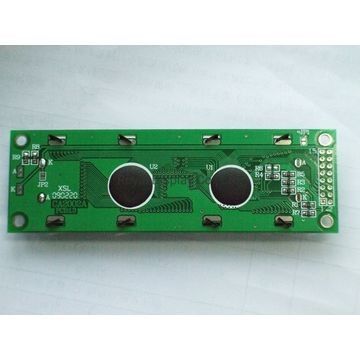

LCM 20X2 Character LCD Display FSTN Postive LED Backlight

large.img.alt
small.img.alt small.img.alt

Large Image :  LCM 20X2 Character LCD Display FSTN Postive LED Backlight

Product Details:
Place of Origin: CHINA
Brand Name: ROHS
Certification: RoHS, ISO
Model Number: RYP2002B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD6.89-8.89
Packaging Details: Cartons, Capboard, EPE, Blister TrayFuel Dispenser LCD 22 digital 7 segment LCD display module PRODUCT DESCRIPTION
Delivery Time: 20-25 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detailed Product Description
Model No.: RYP2002B Dot Format: 20X2
LED Backlight: White Or Amber LED Backlight Controller: ST7066U
Operating Temp: -20º C~70º C LCD Type: FSTN Postive
High Light:

LCM 20X2 Character LCD Display

,

Character LCD Display FSTN Postive

,

LED Backlight Character LCD Module

PRODUCT DESCRIPTION

Product Name Big 20X2 Character LCD Module
Model No. RYP2002B
Dot Format 20X2
Outline (mm) 180*40
LCD Type Transmissive/ Negative
Viewing Angle 6 O' clock
Backlight White or Amber LED backlight
Driver IC ST7066U
Power Supply 5V
Operating Temp -30º C~70ºC
Storage Temp -30º C~80ºC





Character LCM
Character LCDs
have been around since the 1950s and are still very common. These displays offer 256 selectable characters and are available with several different font tables to show a variety of languages. They are most commonly known for their ease of programming wide variety of sizes, character arrays and colors.



1>> Customer requirements can be customized,


2>> Available for different modes such as yellow-green, blue and white color.


3>> Support characters: 8x2,16x1,16x2,16x4,20x4, ect..


4>> Customized for the total module including new size, backlight, color,


PCB circuit board. connection mode ect.


Application: DAB Radios,Stereos, Access Control, The Printer


Features

Wide variety of off the shelf items ranging from 8x1 to 40x4 characters

Multiple size and color options available

Most products kept in stock and can ship same day

Quick and easy programming

Low power consumption

Fully customizable









APPLICATION



LCM 20X2 Character LCD Display FSTN Postive LED Backlight 0







WHAT CAN WE CUSTOM?



1. LCD type: VA/TN/HTN/STN Yellow-Green/STN Gray/STN Blue/FSTN/DFSTN

2. Display form: LCD panel/COB/COG/COF

3. Polarizer: Transflective, Transmissive, Reflective

4. Backlight: Green, Gray, Yellow-Green, Blue, Black, White, Orange/Amber, others

5. Operating temperature: 0 to +50°C, -10 to +60°C, -20 to +70℃,-30 ℃ +85 ℃, others

6. Connector/Connection: Metal PIN, Rubber/Zebra, Heat seal, FPC, FFC







We have an enjoyable experience on our best quality product and satisfied service,

LCD professional manufacturer ROYAL DISPLAY with over 10 years experience in LCD field



we do believe we can become your reliable supplier!
