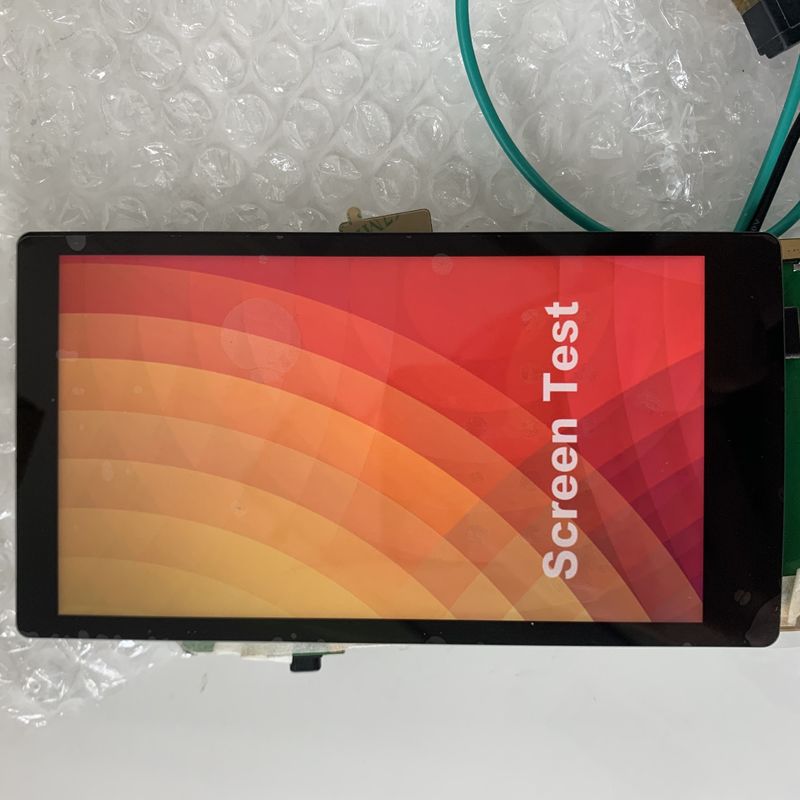

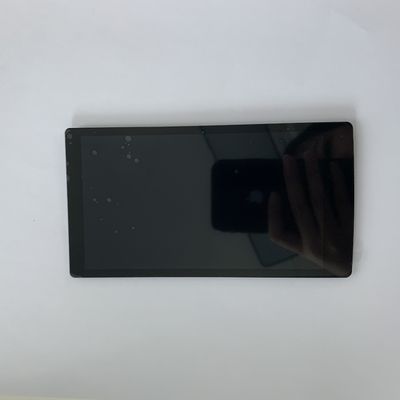

HX8399C Driver Android 5.5'' 1080x1920 TFT LCD Module

large.img.alt
small.img.alt small.img.alt

Large Image :  HX8399C Driver Android 5.5'' 1080x1920 TFT LCD Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: RoHS
Model Number: RYTC55215Q-01
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: $USD 16.5/pcs
Packaging Details: 64pcs/carton
Delivery Time: 7~10 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 300,000 Piece/Pieces per Year
Detailed Product Description
Display Type: FHD TFT Screen Size: 5.5''
Resolution: 1080X3(RGB)X1920 Outline (mm): 70.64 X129.21X 1.47
Polarizer Mode: Transimissive Positive Active Area(mm): 68.04X120.96
LCD Driver: HX8399C Backlight: 14 Chip-white
Viewing Angle: ALL
High Light:

1080x1920 TFT LCD Module

,

5.5'' TFT LCD Module

,

HX8399C Driver TFT LCD Screen

5.5'' 1080X (RGB) X1920 Android TFT LCD Display Module


PRODUCT DESCRIPTION



Item Description
Model Name RYTC55215Q-01
Product type TFT LCD Module
Screen Size 5.5"
Resolution 1080X3(RGB)X1920
Module Size(mm) 70.64 X129.21X 1.47
Active Area(mm) 101.57X76.18
Viewing Angle (Tpy.)θT/θB/θL/θR ALL
Backlight 14 Chip-white
Polarizer Mode Transimissive Positive
LCD Driver HX8399C
Operation Temperature( ºC) -20º C~70ºC
Storage Temperature (ºC) -30º C~80ºC





HX8399C Driver Android 5.5'' 1080x1920 TFT LCD Module 0



PRODUCTS QUALITY ASSURANCE


1. High-quality raw material supplier
after-sales guarantee and long-term stable supplier, LCD panel and Driver IC made of A-regulated raw materials.


2. Other materials
such as polarizers, backlight film materials, etc. We also use brand new A-regulated raw materials


3. Strict quality control


Through rate up to 98.5%,Customer online defect rate as low as 0.3%.
Inspection is done in FOG==>LCM==>LCM+RTP/CTP==> production online inspection ==>Q.C inspection==>aging test 4 hours with load in 60 ℃ special room (as option)==>OQC.
A product must pass 5 tests before shipment: incoming inspection, 100% online inspection, QC on-site inspection, aging test and OQC inspection, etc.
