FSTN P2.54 Connector New Module LCD LED Backlight RYB030PW06-A1

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

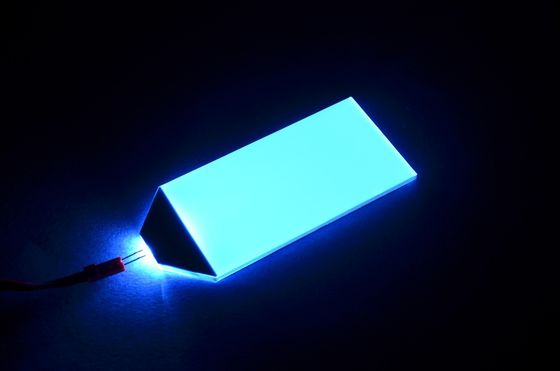

Large Image :  FSTN P2.54 Connector New Module LCD LED Backlight RYB030PW06-A1

Product Details:
Place of Origin: China
Brand Name: Royal Display
Certification: SGS ROHS
Model Number: RYB030PW06-A1
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 1.98-2.38
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 25~28 Working Days
Payment Terms: Western Union, MoneyGram, T/T, L/C, D/A, D/P
Supply Ability: 500k/Month
Detailed Product Description
Blacklight: White Color: Muti-Color
Pixel Pitch: Customized Certificate: RoHS REACH
High Light: FSTN Module LCD LED Backlight, P2.54 Connector LCD LED Backlight, RYB030PW06-A1

Color Temperature(CCT) 4100K (Neutral White), Pure White
Color Rendering Index(Ra) 90
Working Lifetime(Hour) 50000
Lighting solutions service Lighting and circuitry design, Project Installation
Certification ce, LVD, RoHS
Lamp Luminous Flux(lm) 4000
Working Time (hours) 4000
Beam angle 50000

SMD LED backlight specifications:

SMD LED backlight means LEDs are bonded on the PCB.So it is necessary to make PCB mold

1) LED Backlight size: LED backlight size will be decided by LCD size. Usually,LED backlight should be longer than LCD,because LED backlight needs a 5-6mm covering area to covering LED.

2)LED backlight color:
LED backlight colors just have white,blue,green,red,orange,amber,yellow and so on. All colors are confirmed by LED colors. You can't specify a special color or send us Pantone color,then ask us to follow it. (Maybe there is no this kind of LED)
If you need kinds of colors,then you can use RGB LED backlight. But RGB LED color is not very pure.

3)Connector:
Wires connection:solder wires on the PCB
PCB Pin connection:PCB pin should be inserted into PCB and solder it.

4)LED numbers:
If LED backlight size is very big,maybe it is necessary to use 2 LED,3 LED,4,5.........
If LED backlight is too long,we should install LED at both side of backlight.

5)LED voltage:
White LED,blue LED,green LED is 3.0-3.2V
Red LED,orange LED,yellow-green LED etc are 1.9-2.0V

6)LED current
White LED,blue LED,green LED is 15 mA/pc
Red LED,orange LED,yellow-green LED etc are 10mA/pc

FSTN P2.54 Connector New Module LCD LED Backlight RYB030PW06-A1 0
