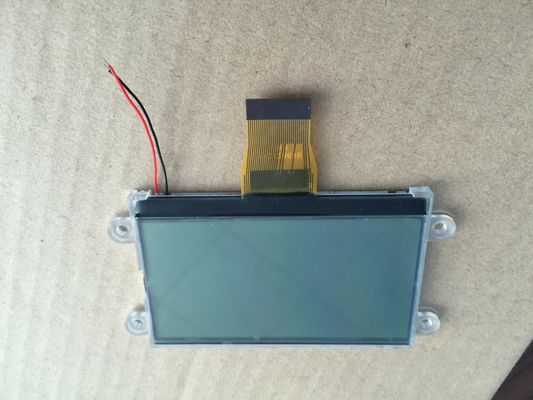

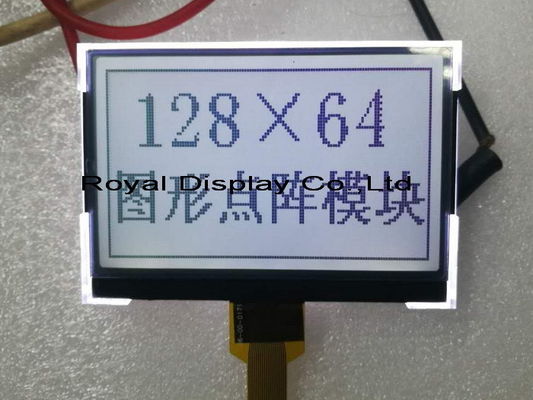

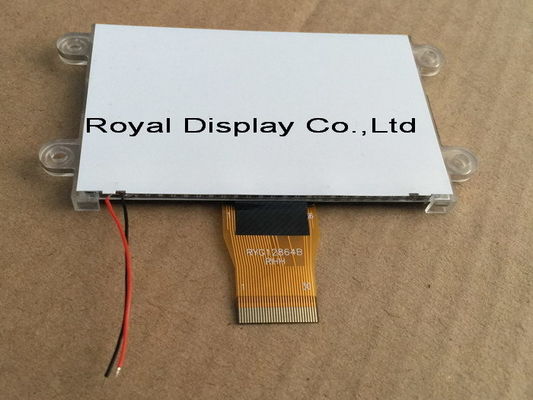

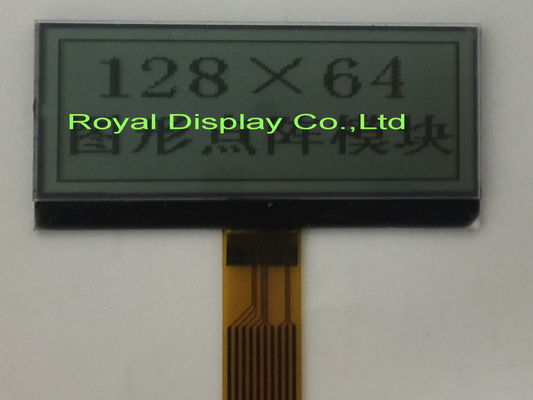

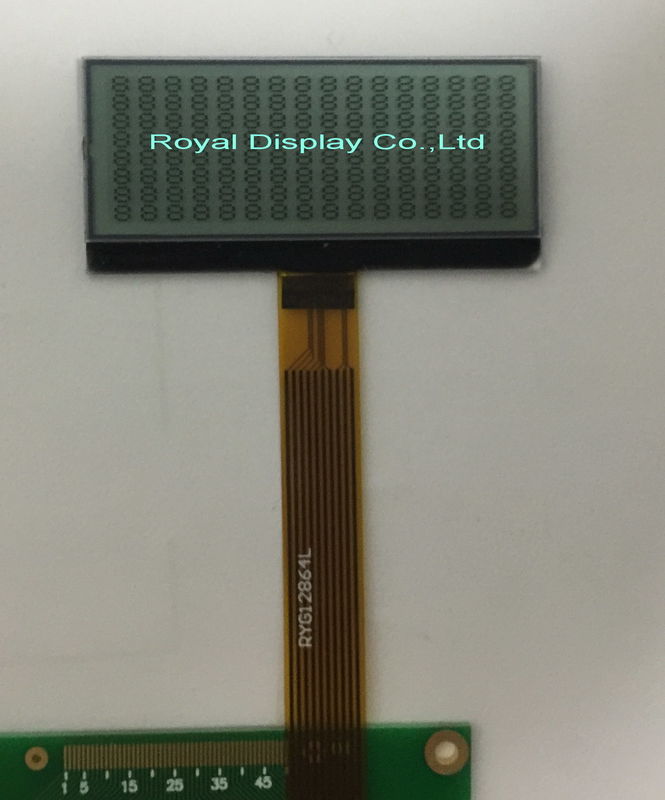

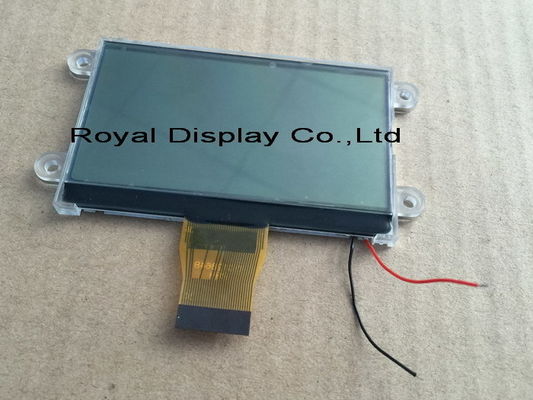

Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module

Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module
Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module

Large Image :  Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: RYG12864M
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 2.38-3.98
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: L/C, T/T, Western Union, D/P, MoneyGram
Supply Ability: 300K/M
Detailed Product Description
DOT Format: 128X64 Outline (mm): 41*35
IC Package: Cog Backlight Color: White Color
Display Type: FSTN Power Supply: 5V
Interface: Parallel View Angle Range: No
Connector: FFC-Connector Viewing Direction: 12:00
High Light:

Stn Graphic LCD Graphic Module

,

ROHS FSTN Graphic LCD Module

,

FPC FSTN Lcd Display Module

Small Panel Graphic 128x64 STN LCD Display Module

PRODUCT DESCRIPTION
1. 128x64dots
2. Parallel interface
3. Ultra high contrast, YG & White LED backlight as option
4. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option



Item Description
Product Name 128x64dots Graphic LCD Module
Model No. RYG12864M
Dot Format 128x64
Outline (mm) 41*35
Viewing Area(mm) 12:00
Pixel Size( mm) 0.43 x 0.42
Viewing Angle 12 O' clock
LCD Type FSTN-Positive, STN-Gray
Backlight White or Amber LED backlight
Driver IC ST7565R
Power supply 3V
Interface Parallel
Operating Temp -20º C~70ºC
Storage Temp -30º C~80ºC





Production Line



Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module 0

Factory Price FSTN-Positive Stn-Gray 128X64dots Cog/COB Stn LCD Display Module 1




FAQ



Q:What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.



Q:How to control the quality of products?
A:The company has a professional quality team, and all products are 100% inspected before shipment.



Q:How long is the warranty and service of the product?
A:Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.



Q:What certification could provide ?
A: There are RoHS/CE certificatons for raw materials. The products reach RoHS/CE standard. And they could be certified with RoHS/CE if the certifications are needed.



Q:Can you provide product drawings and test reports?
A:According to customer needs, our company can provide product related information and test reports.



Q.: What is your business type?
A: A: We design, produce and export our products.
