Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner

large.img.alt
small.img.alt small.img.alt small.img.alt

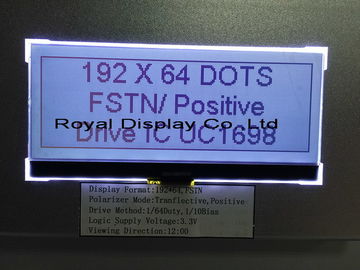

Large Image :  Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYG19264A
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 300k/Month
Detailed Product Description
Product Name: UDLP-GG19264B-FSPCELW-V01 COG Graphic LCD Module FSTN Positive Black On White 192*64 Dots , 3.3V Power Supply Model No.: UDLP-GG19264B-FSPCELW-V01
Dot Format: 192X64 Viewing Angle: 6 O' Clock
LED Backlight: White Driver IC: UC1698
Operating Temp: -20º C~70º C LCD Type: FSTN Postive
High Light:

Lcd Graphic Display Module

,

Monochrome Graphic Display



UDLP-GG19264B-FSPCELW-V01 COG Graphic LCD Module FSTN Positive Black On White 192*64 dots , 3.3V Power supply



  1. COG Graphic LCD Module
  2. Dots Format , 192x64
  3. Controller , UC1698 OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. LED Back Light , White , Red , Amber .
  6. Widely Use On Hand-held Device .
  7. CN1 SYMBOL CN1 SYMBOL
    1~2 LED-A 16~17 VSS
    3~4 LED-K 18 BM0
    5 VLCD 19 CS0
    6~7 VS+ 20 CD
    8~9 VS- 21 WR1
    10 VB0- 22 WR0
    11 VB1- 23 RST
    12 VB1+ 24~32 DB0~DB8
    13 VB0+ 33 DB13
    14~15

    VDD

    34 DB15

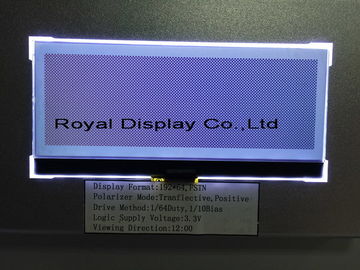

    Custom Lcd Graphic Display Module For Clusters / Car Radios / Air Conditioner 0

Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range
