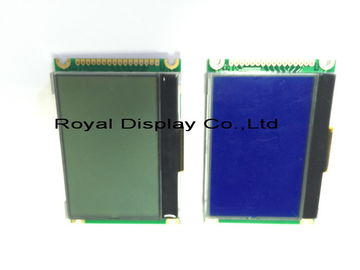

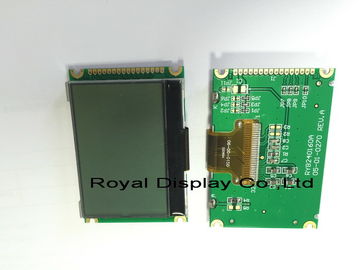

COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYB240160A
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Price: USD 2.45-3.99
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability: 300k/Month
Detailed Product Description
Product Name: COG Graphic LCD Module FSTN Model No.: RYB240160A
Dot Format: 240X160dot Viewing Angle: 6 O' Clock
LED Backlight: Red Or Green Operating Temp: -20º C~70º C
LCD Type: FSTN Postive Driver: UC1698U
Interface: Serial/parallel
High Light:

Lcd Graphic Display Module

,

Monochrome Graphic Display

COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module



Display Specifications



 Item  Description
 Product Name  240x160 dots LCD Module
 Model No.  RYG240160M
 Dot Format  240 x 160
 Outline Dimension(mm)  60*51.7
 Viewing Area(mm)  56*38.7
 Pixel Size( mm)  0.196 x 0.196
 Viewing Angle  6 O' clock
 LCD Type  FSTN-Positive, STN-Blue, STN-YG
 Backlight  Red or Green LED backlight
 Driver IC  UC1698U
 Power supply  3.3V
 Interface  Parallel/Serial
 Operating Temp  -20º C~70º C
 Storage Temp  -30º C~80º C



COG Mono 240160 FSTN Transmissive White Backlight LCD Display Module 0

FAQ


Q1. How can I get the samples?



A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.



Q2. How to order lcd?



A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.



1)Product information-Quantity, part number



2)Delivery time required.



3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.



4)Forwarder's contact details if you have any in China.



Q3. How long can I expect to get the sample?



A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.



Q4. When can I get the datasheet?



A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately





Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features

Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range

Custom LCD/LCM are available
