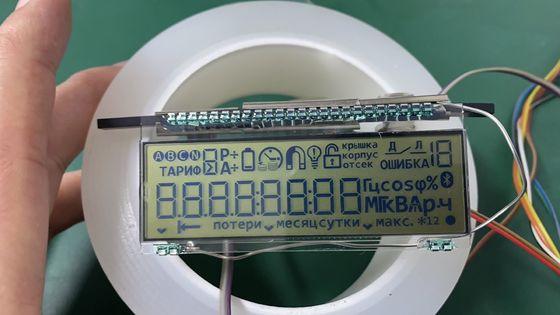

7 Segment HTN Positive LCD Display 3.3V For Electricity Meter

large.img.alt
small.img.alt small.img.alt

Large Image :  7 Segment HTN Positive LCD Display 3.3V For Electricity Meter

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: ROHS
Model Number: RYD2152HR01
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 0.45-0.88
Packaging Details: Cartons, Capboard, EPE, Blister Tray.
Delivery Time: 25~28 Working Days
Payment Terms: L/C, T/T, Western Union, Western Union, MoneyGram
Supply Ability: 150K/Month
Detailed Product Description
Display Type: HTN, Positive Transflective Size: 74*32.5*2.8mm
Viewing Direction: 6 O'clck Driver Method: 1/4duty 1/3bias
Operating Temp.: -40℃~+85℃ Stroage Temp.: -45℃~+85℃
Customized: Available,OEM ODM Welcome
High Light:

HTN Positive LCD Display

,

7 Segment Positive LCD Display

,

3.3V Electricity Meter LCD Panel

Customized 7 segment TN Positive Transflective LCD display for electricity meter

PRODUCT DESCRIPTION


* RYD2151HR01 is a liquid crystal display (LCD).

* It is composed of a Segment LCD Display.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.


Item Description
Model No. RYD2152HR01
Display Type HTN, Positive Transflective
Outline (mm) 74*32.5*2.8mm
Viewing Angle 6 O' clock
Driver method 1/4duty 1/3bias
Operating Voltage 3.3V
Connector PIN
Operating Temp -40º C~85ºC
Storage Temp -50º C~85ºC

7 Segment HTN Positive LCD Display 3.3V For Electricity Meter 0

What Are The Advantages Of Segment Displays?

Although Segment displays are an older technology, it is still one of the most popular. After all, they cannot display all the colors of a TFT or OLED like what can be seen on a cell phone and tablet.

Why?

Below are key reasons why people keep designing these LCD displays into new products.

Lowest Piece Price

The unit price of a segment display can range from less than $0.50/piece to $15/piece depending on quantity, size of glass, and other variables.

Lowest Tooling Fee

The tooling fee for a custom display is the lowest of all the technologies and allows the customer to receive a LCD that is manufactured to the exact dimensions requested, including custom icons and segments.

Royal Display offers a one-time NRE (Non-recurring engineering) or tooling fee. This includes all design, technical support, and samples.

Low Power Consumption

Segment displays require less power than other display technology such as TFT, OLED, and UWVD. This makes these LCDs ideal for applications that are battery powered or solar powered. They require the lowest power to drive, an estimated 2uA per centimeter squared. Glass only displays (no backlight and no controller) require an estimated 10% of the power that is required for a LED backlight. In other words, a static display without a backlight will draw around 1mA; the same display with a LED backlight will demand from 10mA up to 25mA. Most displays can be driven at 3.3V or 5V since microprocessors can operate at both voltages. 3.3V is becoming more popular since two double ‘AA’ batteries can produce between 3.0V and 3.3V.

7 Segment HTN Positive LCD Display 3.3V For Electricity Meter 1
