7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits

7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits
7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits 7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits 7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits 7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits 7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits

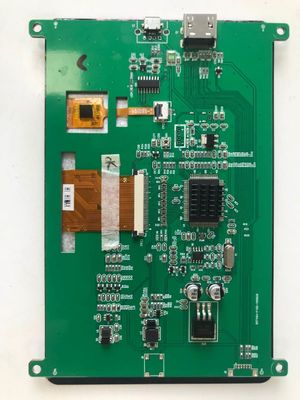

Large Image :  7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: R070WSV002
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 25.89-29.98
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: D/A, Western Union, MoneyGram
Supply Ability: 300K/M
Detailed Product Description
Product Type: TFT LCD Resolution: 800X3(RGB)X480
Active Area(mm): 154X86 Viewing Area(mm): 155X87
Viewing Angle: IPS Interface: 40pin FPC, Parallel 24bit RGB
High Light:

40 Pin FPC IPS LCD Monitor

,

800x480 IPS LCD Monitor

,

200 Nits Touch Screen LCD Display

PRODUCT DESCRIPTION

Item Description
Model Name R070WSV002
Product type LCD Module
Screen Size 7"
Aspect Ratio 16:9
Resolution 800X3(RGB)X480
Module Size(mm) 164x100
Active Area(mm) 154x86
Viewing Angle (Tpy.)θT/θB/θL/θR 50/70/70/70
Luminance(nits) 200
Contrast Ratio 500
Response Time(ms) 25
Weight (g) 127.5
Interface 50pin FPC,Parallel 24bit RGB
Operation Temperature( ºC) -20º C~70ºC
Storage Temperature (ºC) -30º C~80ºC
HTHH.(op) 40ºC 90%RH 240h







OUR SERVICE ADVANTAGES



1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.





7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits 0





TFT LCDs

Thin-Film-Transistor Liquid Crystal Displays (TFTs) are perhaps the most encountered display technology we see daily. Often seen in cell phones, tablets, cameras and countless other devices, this technology offers several hundreds of thousands of colors with a high pixel count to offer supreme visual clarity. In addition, all TFTs are available off the shelf with resistive and capacitive touch panel options.



Features

Broad selection of off the shelf products

Sunlight readable options available

Capacitive and Resistive options available for every display

Most products are kept in stock and can ship same day

Multiple interfaces available

Customizable FPC cables, LED backlights, and bezels



7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits 1





TFT PROCESS



7 Inch 40 Pin FPC 800x480 IPS LCD Monitor Custom 200 Nits 2







FAQ



Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.


Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.


Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.


Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
