640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5''

640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5''
640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5'' 640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5'' 640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5''

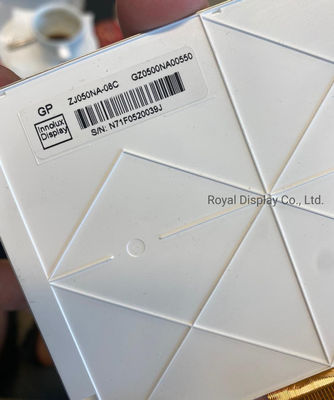

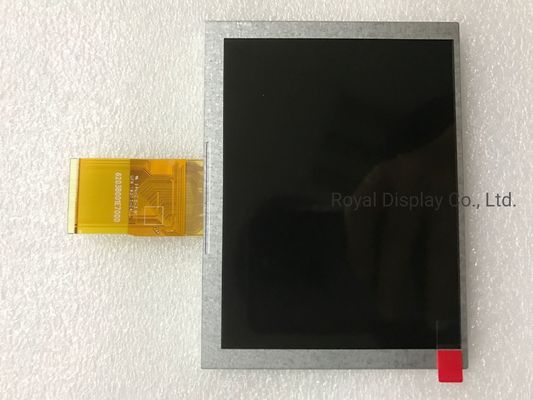

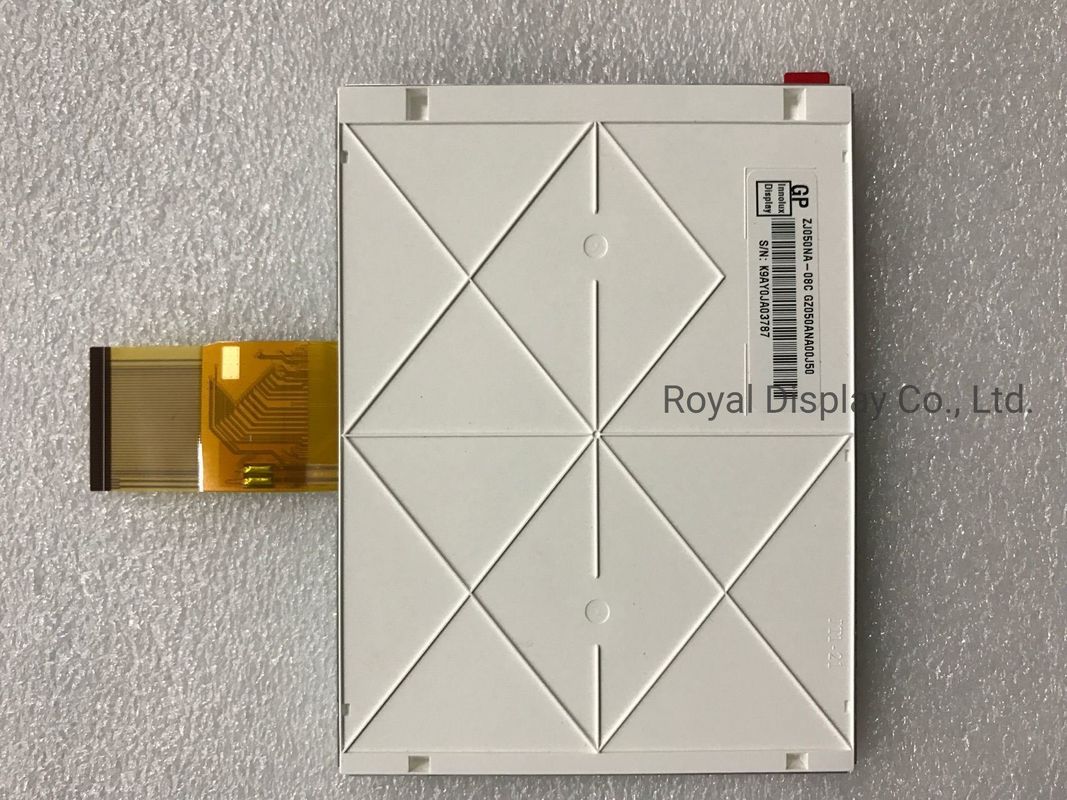

Large Image :  640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5''

Product Details:
Place of Origin: China
Brand Name: ROYAL DISPLAY
Certification: ROHS, ISO
Model Number: ZJ050NA-08C
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: USD 15.59-16.89
Packaging Details: Cartons, Capboard, EPE, Blister Tray
Delivery Time: 15-20 work days
Payment Terms: Western Union, MoneyGram, L/C,
Supply Ability: 300K/M
Detailed Product Description
Product Type: TFT LCD Resolution: 640X3(RGB)X480
Module Size: 117.65 X 88.43 X 5.7 Active Area(mm): 101.57X76.18
Viewing Angle: 50/70/70/70 Interface: 50pin FPC, Parallel 24bit RGB
High Light:

640x480 TFT LCD Panel

,

24 Bit RGB TFT LCD Panel

,

250nits Lcd Panel Module

100% Original Innolux 640x(RGB)x480 Normally white Transmissive ZJ050NA-08C 5'' TFT LCD

Innolux's employees worldwide number more than 60,000, and its production sites and sales locations span the global.
With its major TFT plants located in Zhunan and Tainan, both in Taiwan, Innolux has also established overseas
module plants in the Chinese cities of Ningbo, Nanjing, Foshan, and Shanghai. Innolux's extensive global presence allows it to quickly provide a full range of services to its customers, reducing logistics and manpower costs, while achieving the environmental objectives of energy conservation and reduced carbon emissions. Innolux's unique intelligent management platform has not only enhanced the company's management capabilities, but also provides customers with prompt, accurate delivery information.
This is just one of the ways we are constantly striving to boost customer satisfaction.



Item Description
Model Name ZJ050NA-08C
Product type TFT LCD Module
Screen Size 5.0"
Aspect Ratio 4:3
Resolution 640X3(RGB)X480
Module Size(mm) 117.65 x 88.43 x 5.7
Active Area(mm) 101.57X76.18
Viewing Angle (Tpy.)θT/θB/θL/θR 50/70/70/70
Luminance(nits) 250
Contrast Ratio 500
Response Time(ms) 25
Weight (g) TBD
Interface 50pin FPC,Parallel 24bit RGB
Operation Temperature( ºC) -20º C~70ºC
Storage Temperature (ºC) -30º C~80ºC
HTHH.(op)

40ºC 90%RH 240h



640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5'' 0

640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5'' 1



OUR SERVICE ADVANTAGES



1, Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working. Both Original and High quality OEM products available.

2, Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3, Payment Terms: T/T, Western Union,L/C, PayPal

4, Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5, Service: Best after-sales service to ensure satisfaction from customers.

6, Warranty: Usually, product warranty for one year.

7, Samples: Our company offers samples for quality test or other business purposes, but we kindly ask you to pay for samples and the freight.

8. If mass production has any quality problem, customer can return it.



FEATURE

1. Low power consumption

2. High brightness and luminous intensity output

3. Easy assembly

4. High intensity and reliability

5. Low voltage and current operation

6. energy saving & long life

7. Solid-state LED chip based

8. Easy mounting on printed circuit board and sockets

9. Rhos&Reach approved

10. Better show effect and wide view angle





640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5'' 2


















640x480 24 Bit RGB 50pin FPC TFT LCD Panel 250nits Zj050na-08c 5'' 3



FAQ



Q: Can we customize the product? What cost will be included?
A: The product can be customized, but the TFT LCD module has different tooling cost, which includes FPC, Touch Screen, Backlight, Bezel, and so on.

Q: Payment Terms?
A: Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.

Q: What is your delivery method?
A: EXW Shenzhen by DHL/ UPS / FEDEX/TNT, or ship the goods to your HK or Shenzhenforwarder.



Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight ,Bezel and so on.



Q:What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK/SZ forwarder.



Q:Products are in stock? How long can you deliver?
A:Our inventory is mainly raw materials,semi-finished and a small amount of finished products.After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks
