5.7" Mechanical Size COG LCD MODULE With Optrex DMF50840 / DMF50714

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

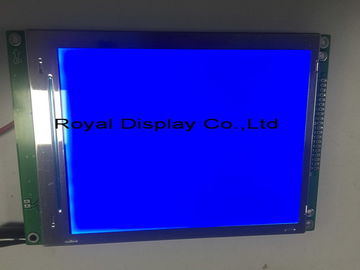

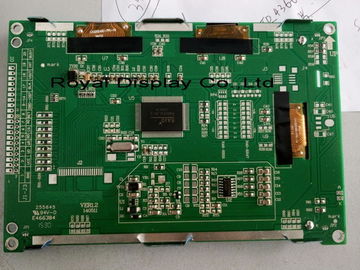

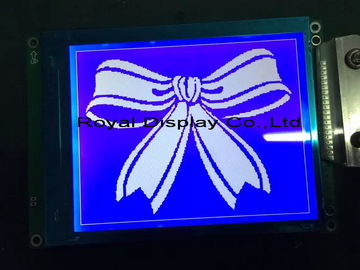

Large Image :  5.7" Mechanical Size COG LCD MODULE With Optrex DMF50840 / DMF50714

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYP320240B
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Packaging Details: 220pcs/CTN 11Kg L45*W36*H32CM
Delivery Time: 25~28 Working Days
Supply Ability: 10k/Month
Detailed Product Description
Product Name: 5.7" RYP320240B Compatible With Optrex DMF50840 / DMF50714 Model No.: RYP320240B
Dot Format: 320X240 Viewing Angle: 6 O' Clock
LED Backlight: White Operating Temp: -20º C~70º C
LCD Type: FSTN Postive Or STN Blue Driver: RA8835 RA8806
High Light:

Cog Lcd Display

,

Tft Lcd Screen



5.7" RYP320240B Graphic LCD Module 320*240 dots , Mechanical Size Compatible With Optrex DMF50840 / DMF50714

1. 320x240 dots, 5.7"
2. Parallel interface
3. DC/DC on board, 5v power supply
4. STN-blue, FSTN-positive with white LED backlight
5. Mechanical size compatible with Optrex DMF50840 / DMF50714
6. Compact structure, high reliable, pure new design
7. Touch panel optional



Item Description
Product Name 320x240 dots Graphic LCD Module
Model No. RYP320240B
Dot Format 320 x 240
Outline Dimension(mm) 160*109
Viewing Area(mm) 122*92
Pixel Size( mm) 0.36 x 0.36
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Blue,
Backlight White
Driver IC RA8835  RA8806
Power supply 5.0V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C



Typical Applications:

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc

Features:
Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range



5.7" Mechanical Size COG LCD MODULE With Optrex DMF50840 / DMF50714 0
