160x160 Lcd Graphic Display , Monochrome Graphic Display With PCBA

160x160 Lcd Graphic Display , Monochrome Graphic Display With PCBA
160x160 Lcd Graphic Display , Monochrome Graphic Display With PCBA 160x160 Lcd Graphic Display , Monochrome Graphic Display With PCBA 160x160 Lcd Graphic Display , Monochrome Graphic Display With PCBA

Large Image :  160x160 Lcd Graphic Display , Monochrome Graphic Display With PCBA

Product Details:
Place of Origin: CHINA
Brand Name: ROYAL DISPLAY
Certification: SGS ROHS
Model Number: RYD160160A
Payment & Shipping Terms:
Packaging Details: 220pcs/CTN 15Kg L45*W36*H32CM
Delivery Time: 30~35 Working Days
Supply Ability: 500k/Month
Detailed Product Description
Product Name: RYD160160A 160*160 Dots With PCBA COG Graphic LCD Module Model No.: RYD160160A
Dot Format: 160x160 Viewing Area(mm): 60.0x60.0
Viewing Angle: 6 O' Clock LCD Type: FSTN-Positive
LED Backlight: White Driver IC: UC1698
Operating Temp: -20º C~70º C Storage Temp: -30º C~80º C
High Light:

Lcd Graphic Display Module

,

Transflective Lcd Display

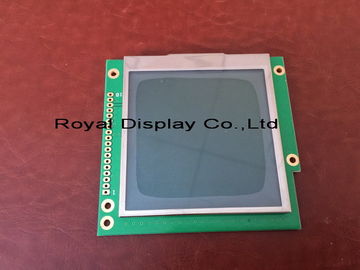

RYD160160A 160*160 dots With PCBA COG Graphic LCD Module FSTN Black on White

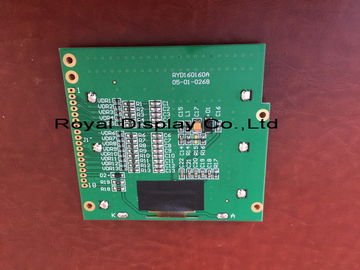

  1. COG Graphic LCD Module with PCBA
  2. Dots Format , 160X160
  3. Controller , UC1698 OR EQUIV
  4. STN-Gray, Blue,DFSTN-Negative.FSTN-Postive
  5. LED Back Light , White , Red , Amber .
  6. Widely Use On Electric Power Device .
  7. CN1 SYMBOL
    1 GND
    2 AO
    3 /WR
    4 /RD
    5 /CS
    6 /RST
    7 VCC
    8~15 DB0~OB7
    16 K
    17 NC
    18 A

    160x160 Lcd Graphic Display , Monochrome Graphic Display With PCBA 0
